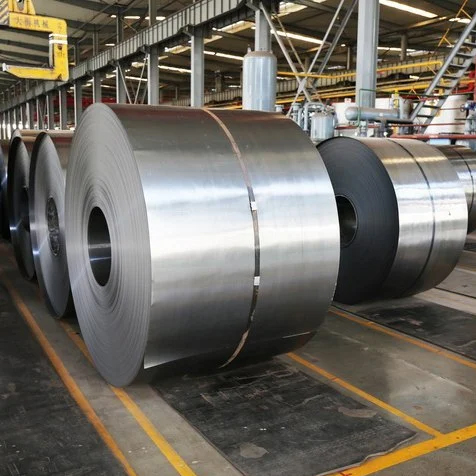

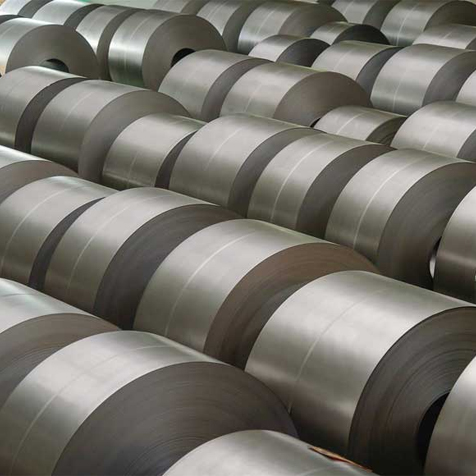

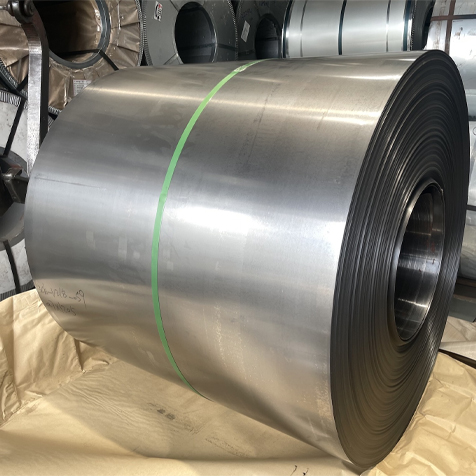

CR Sheet (Cold Rolled Sheet)

Cold Rolled Sheets (CR Sheets) are manufactured by rolling hot rolled steel coils at room temperature below their recrystallization point, which enhances their surface finish, strength, and dimensional accuracy. CR Sheets offer excellent flatness and a smooth surface, making them ideal for applications that require tight tolerances and superior aesthetics. Their consistent thickness and precise mechanical properties make them highly suitable for precision engineering and fabrication work.

At Kaustubh Enterprises, we provide premium-quality CR Sheets that meet industrial standards for durability, strength, and performance. These sheets are widely used across sectors such as automotive, electrical, appliance manufacturing, furniture, and construction. Our CR Sheets are available in various grades, widths, and thicknesses to suit diverse industrial requirements, ensuring efficiency, reliability, and a professional finish in every application.

SPCC Chemical Composition (JIS G3141)
Element Maximum (%)
Carbon (C) 0.15
Manganese (Mn) 0.60
Phosphorus (P) 0.10
Sulfur (S) 0.05
Iron (Fe) Balance
SPCC Mechanical Properties
Property Typical Range Unit
Tensile Strength 270–410 MPa
Yield Strength ≤ 270 MPa
Elongation (L=80mm) 28–40 %
Hardness HRB 50–65 Rockwell B
SPCD Chemical Composition (JIS G3141)
Element Maximum (%)
Carbon (C) 0.10
Manganese (Mn) 0.50
Phosphorus (P) 0.035
Sulfur (S) 0.025
Iron (Fe) Balance
SPCD Mechanical Properties
Property Typical Value Unit
Tensile Strength 270–370 MPa
Yield Strength ≤ 240 MPa
Elongation (L=80mm) 30–42 %
Hardness HRB ≤ 65 Rockwell B
SPDD Chemical Composition (JIS G3141)
Element Maximum (%)
Carbon (C) 0.08
Manganese (Mn) 0.45
Phosphorus (P) 0.030
Sulfur (S) 0.020
Iron (Fe) Balance
SPDD Mechanical Properties
Property Typical Value Unit
Tensile Strength 270–350 MPa
Yield Strength ≤ 220 MPa
Elongation (L=80mm) 35–45 %
Hardness HRB ≤ 60 Rockwell B
SPEDD Chemical Composition (Special Grade)
Element Maximum (%)
Carbon (C) 0.02–0.04
Manganese (Mn) 0.25–0.35
Phosphorus (P) 0.020
Sulfur (S) 0.015
Iron (Fe) Balance
SPEDD Mechanical Properties
Property Typical Value Unit
Tensile Strength 260–320 MPa
Yield Strength ≤ 200 MPa
Elongation (L=80mm) 40–48 %
Hardness HRB ≤ 55 Rockwell B
CRD513 Chemical Composition
Element Maximum (%)
Carbon (C) 0.10
Manganese (Mn) 0.50
Phosphorus (P) 0.035
Sulfur (S) 0.025
Iron (Fe) Balance
CRD513 Mechanical Properties
Property Typical Value Unit
Tensile Strength 270–390 MPa
Yield Strength 140–240 MPa
Elongation (L=80mm) 30–40 %
Hardness HRB ≤ 65 Rockwell B
CRDD513 Chemical Composition
Element Maximum (%)
Carbon (C) 0.06
Manganese (Mn) 0.45
Phosphorus (P) 0.030
Sulfur (S) 0.020
Iron (Fe) Balance
CRDD513 Mechanical Properties
Property Typical Value Unit
Tensile Strength 270–350 MPa
Yield Strength ≤ 220 MPa
Elongation (L=80mm) 36–45 %
Hardness HRB ≤ 60 Rockwell B
CR4EDD513 Chemical Composition
Element Maximum (%)
Carbon (C) 0.06
Manganese (Mn) 0.40
Phosphorus (P) 0.030
Sulfur (S) 0.025
Iron (Fe) Balance
CR4EDD513 Mechanical Properties
Property Typical Value Unit
Yield Strength ≤ 210 MPa
Tensile Strength 270–350 MPa
Elongation (L=80mm) ≥ 40 %
Hardness HRB ≤ 60 Rockwell B

CR1 to CR5 – Chemical & Mechanical Properties

Grade Chemical Composition (Max %) Mechanical Properties
Carbon (C) Manganese (Mn) Phosphorus (P) Sulfur (S) Yield Strength (MPa) Tensile Strength (MPa) Elongation (%) Hardness (HRB)
CR1 0.15 0.60 0.06 0.06 ≤ 280 270–410 ≥ 28 ≤ 70
CR2 0.12 0.50 0.05 0.05 ≤ 260 270–390 ≥ 30 ≤ 65
CR3 0.10 0.45 0.04 0.04 ≤ 240 270–370 ≥ 34 ≤ 60
CR4 0.08 0.40 0.03 0.03 ≤ 210 270–350 ≥ 38 ≤ 60
CR5 0.02 0.30 0.02 0.02 ≤ 180 270–330 ≥ 40 ≤ 55
